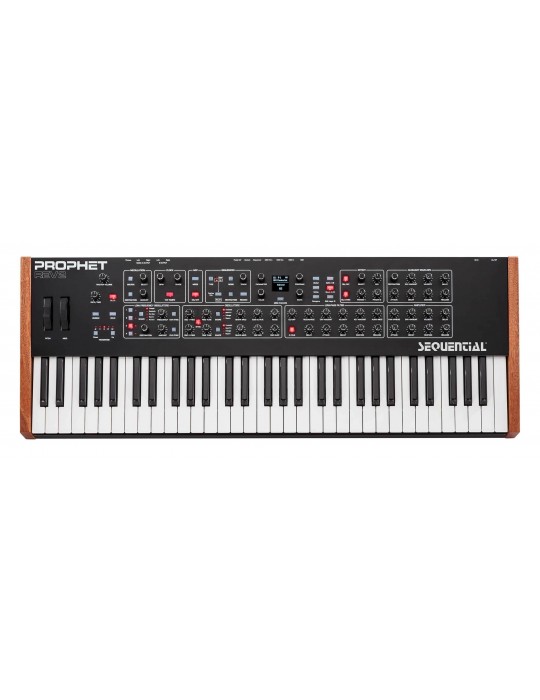

Sequential Prophet REV2-8 Keyboard SYNTH

CARACTERÍSTICAS

· OSCILLATOR · 2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)

· Glide (portamento): separate rates per oscillatoWhite noise generaAnalog VCAs

· Hard sync

· STATE-VARIABLE FILTER:  1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)

· FILTER ENVELOPE : 3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.

LOW FREQUENCY OSCILLATOR: 4 LFO’s with key sync per LFO

Modulation: 8-slot modulation matrix

· AFTERTOUCH

· Source: channel (mono) aftertouch with bi-polar amount

· Destinations: oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, filter envelope amount, filter mode

CLOCK

· Master clock with tap tempo

· BPM control and display

· MIDI clock sync

ARPEGGIATOR

· Programmable arpeggiator with up, down, up+down, random, assign modes

· Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note

· One, two, or three octave range

· Re-latching arpeggiation

· Note repeat

· SEQUENCER

· Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.

EFFECTS

· Stereo analog distortion

· Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifters, and ring modulator

· Delay sync

· True bypass maintains fully analog signal path when digital effects are off

PERFORMANCE CONTROLS

· 5-octave keyboard with semi-weighted action, velocity, and aftertouch

· 52 knobs and 20 buttons enable deep and comprehensive editing with little to no menu diving.

· Spring-loaded pitch wheel and assignable mod wheel

· Split/Stack 2-way split/bi-timbral

PATCH MEMORY

· 512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

IN/OUT

· MIDI In, Out, Thru

· Main stereo audio output: 1/4″ unbalanced

· Output B stereo audio output: 1/4″ unbalanced

· Sustain pedal input: accepts normally on or normally off momentary footswitch.

· Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).

· Headphone output: 1/4″ stereo phone jack.

POWER

· IEC AC power inlet for internal power supply

· Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption

PHYSICAL SPECS

· 32.26 cm cm x 89.20 cm x 9.65 cm

· 9,3 kg
