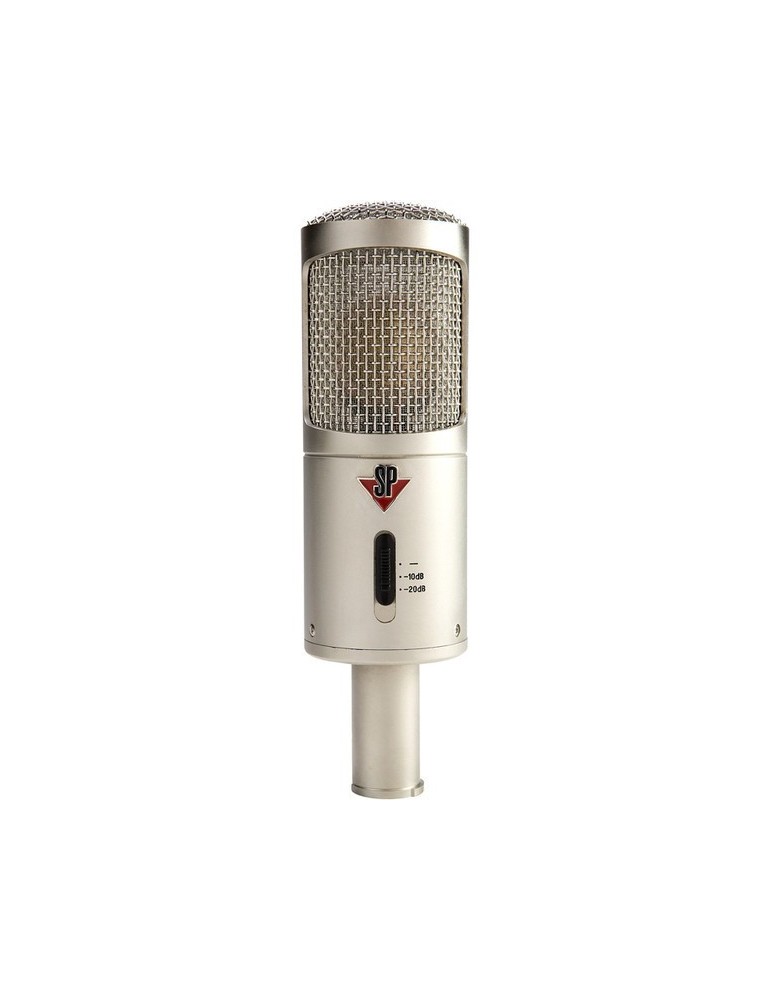

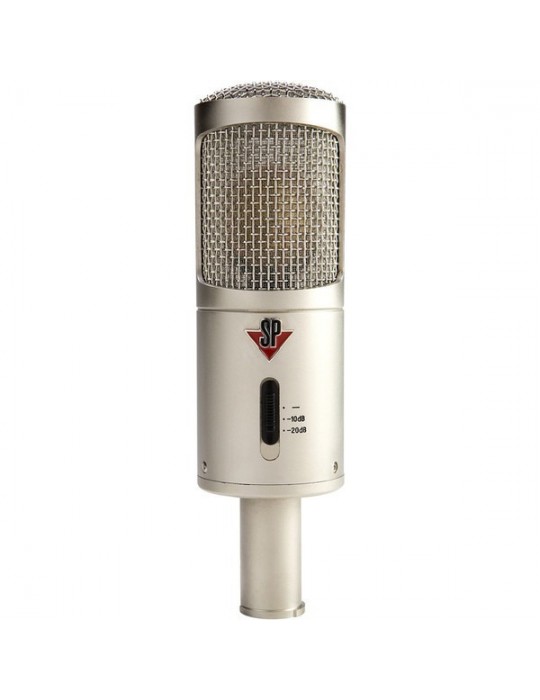

STUDIO PROJECTS B-1 Micrófono Condenser cardiod Mic

Featuring upgraded electronics and a sleek new look, the new SP microphone product line is the result of 5 years of research and development by Brent Casey, veteran microphone designer and Vice President of Engineering of Studio Projects. The new electronics allow for better signal to noise ratio, as well as greater dynamic range.

The Studio Projects B1 condenser microphone is a large diaphragm cardioid microphone in a pressure-gradient transducer employing high quality transformerless design and extremely low noise.

It will enhance any professional or project studio application at an unbelievable low price. As a result of uncompromising dedication and today's advanced production abilities, Studio Projects has broken the barrier of quality vs price for today's recording studio environment.

Being versatile is the key in the recording arena, and the Studio Projects B1 is no exception. Equipped with a true 1" 3 um gold sputtered large diaphragm in a pressure gradient transducer capsule, the B1 will deliver the finest quality of vocal and instrumentation recordings in a wide variety of applications while offering a natural extended transparent high end, yet offer the thick bodied low end expected from a quality microphone.

Applications

� Close miking of instruments with high sound pressure levels

� Announcer`s mic for broadcasting/dubbing

� Home recording and project studios

� Vocalist recording

� Spot mic for: wind instruments, strings, percussion and guitar amps

Features

� Pressure-Gradient Transducer, 1" 3 um mylar capsule

� Selectable filters, 75Hz and 150Hz

� Selectable Pads, -10dB and -20dB

Included Accessories

� Foam wind screen

� Zippered Bag

� Shockmount

B1 Specifications

Type: FET 3 micron 1" large single diaphragm

Polar pattern: cardioid.

Frequency response: 20~20000Hz.

Sensitivity: -34dB,(0dB=1V/Pa)

Output impedance:

1000 Ohm.

Maximum SPL: 132db

Noise:

12dB-A (IEC651)

S/N:

82 dB.

Power requirement: 48 +/- 4V.
